CC6 – Column composition

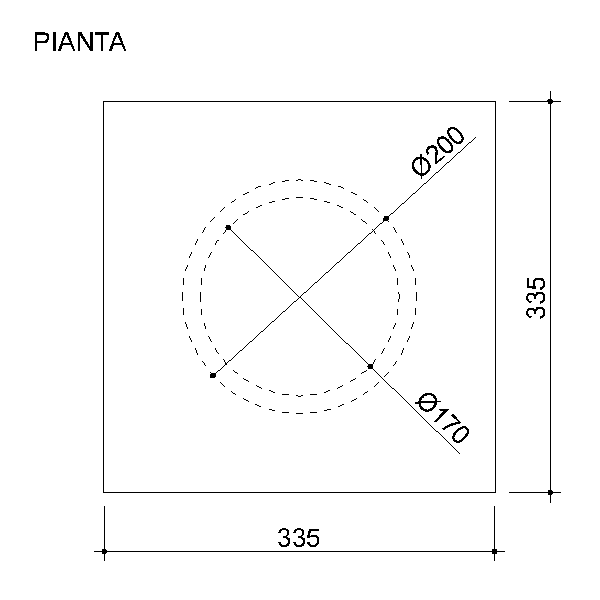

Column composition diam. 200 mm in alabaster plaster with reinforcing fibres  dim. 335 mm x 335 mm, with customized height (H).

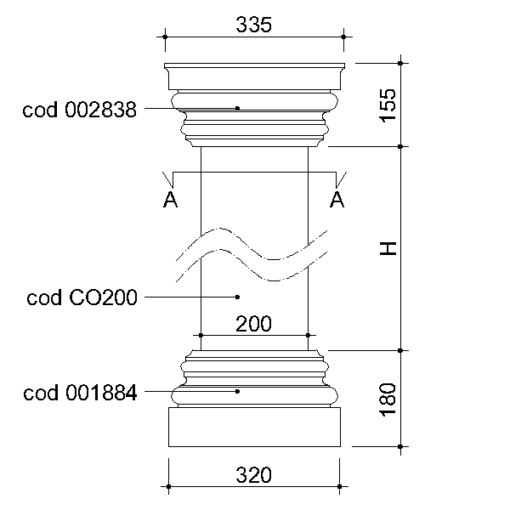

The composition of the column will be supplied as follows:

•  n°1 whole base cod. 001884,
  dimensions: 320 mm x 320 mm, height(H) 180 mm

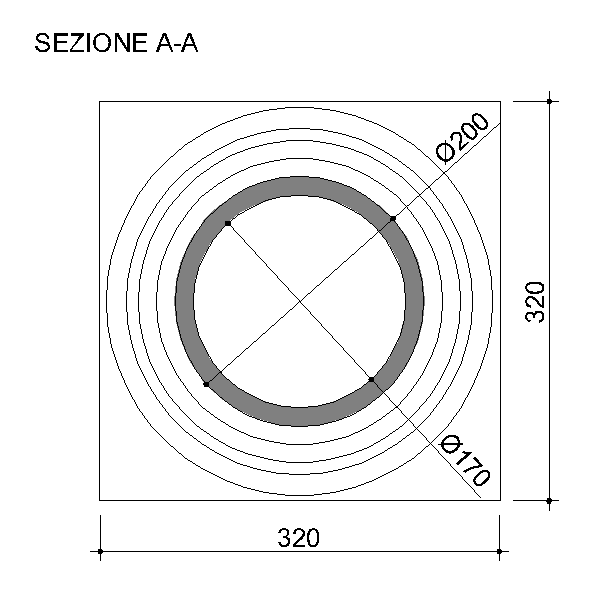

•  n° X* half shafts cod. CO200 , external diameter 200 mm, internal diameter** 170 mm, customized height (H)

•  n°1 whole capital cod. 002838,
  dimensions: 335 mm x 335 mm, height(H) 155 mm

Note: the half shafts are made with some internal bracket to ensure the geometrical features and to ease the handling. If necessary, the brackets can be removed for the installation of the shaft.

* X = quantity of the half shafts according to the height of the column

** If the column is used as a covering of an element, check that the internal diameter of the shaft is larger than the space to be covered.
