CC13 – Column composition

Column composition diam. 300 mm in alabaster plaster with reinforcing fibres  dim. 460 mm x 460 mm, with customized height (H).

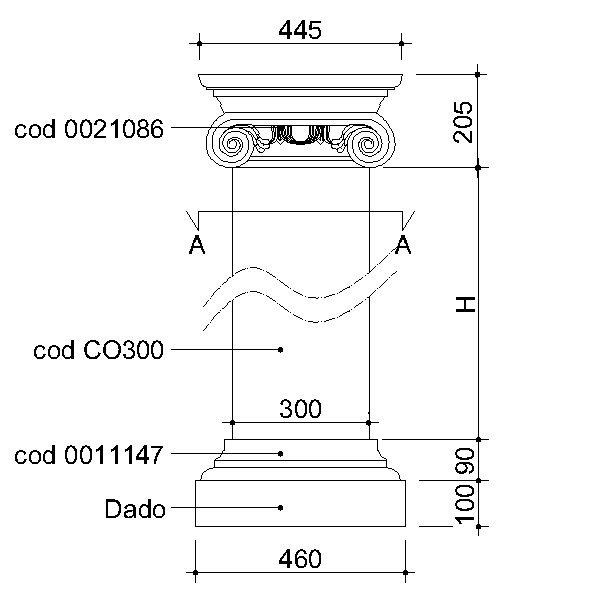

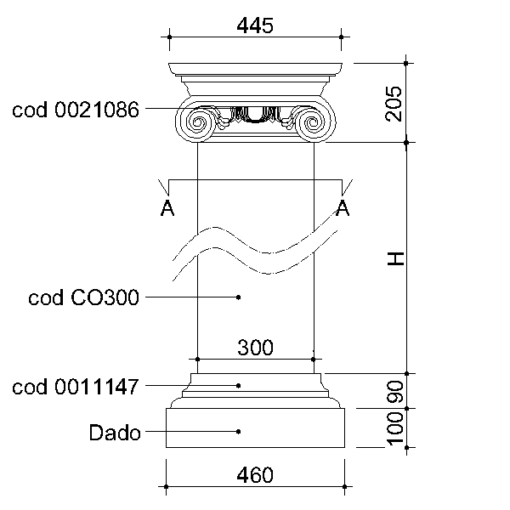

The composition of the column will be supplied as follows:

•  n°1 whole base cod. 0011147,
  dimensions: 460 mm x 460 mm, height(H) 190 mm

• n° X* half shafts cod. CO300 , external diameter 300 mm, internal diameter** 270 mm, customized height (H)

• n°2 half capitals cod. 0021086,
  dimensions: 445 mm x 445 mm, height(H) 205 mm

Note: the half shafts are made with some internal bracket to ensure the geometrical features and to ease the handling. If necessary, the brackets can be removed for the installation of the shaft.

* X = quantity of the half shafts according to the height of the column

** If the column is used as a covering of an element, check that the internal diameter of the shaft is larger than the space to be covered.
